Pusher Compound Turbo System for 2020-22 Ford F250/350 6.7L Powerstroke Super Duty
$3,999.99
Check fitment
Select your vehicle to confirm this part fits.
▼
▼
▼
🔧
Want us to install it? Installation is arranged separately with the shop — call 763-248-5373 to schedule after you order.
Product Overview
Pusher Compound Turbo System
For Ford F-250 / F-350 / F-450 / F-550 Super Duty Trucks
Compliance Notice
This system is not compatible with factory emissions equipment and requires custom tuning to achieve intended performance. Off-road use only.
Overview
The Pusher Compound Turbo System is engineered as a complete, high-efficiency compound setup for the 6.7L Power Stroke platform. The focus is usable, repeatable power across a wide operating range, from daily-driven stock trucks to competitive applications exceeding 1000 HP. Properly configured, compound charging improves low-end response, broadens the powerband, and can deliver measurable fuel efficiency gains under load.
The system supports up to ~750 HP using the stock valley (high-pressure) turbocharger and scales beyond that with upgraded components. It is compatible with most BorgWarner S400 turbochargers paired with stock-based or aftermarket valley chargers.
Key Features & Design Details

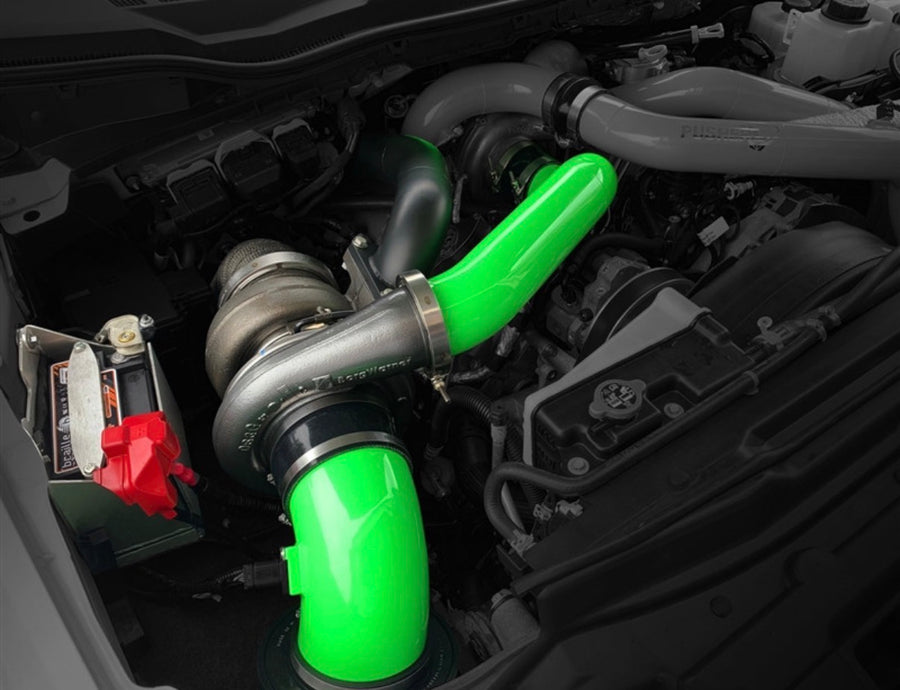

- Optimized Turbo Placement (Industry First) // Includes a sealed AGM battery, CNC press-brake aluminum battery tray, and a TIG-welded low-pressure A/C line to relocate components and position the atmospheric (low-pressure) turbo for optimal plumbing geometry and airflow.
- Precision Fabrication // CNC-machined and laser-cut flanges ensure accurate fitment. All assemblies are fully TIG welded with controlled parameters for consistent penetration and minimal internal flow disruption.
- Serviceability & Install Access // Component layout is designed for straightforward access during installation and maintenance.
- Charge Air System // 3.5" intermediate charge pipe with integrated 1/8" NPT port for boost reference. Front-mount routing optimized for flow and packaging.
- Cold Air Intake // 5" cold air intake with Pusher 50 CAL air filter and pre-filter included for high flow and filtration capacity.
- Exhaust Routing // Intermediate exhaust pipe coated in 2000°F-rated Cerakote, hydroformed to match the S400 turbine inlet and routed to maintain clearance and reduce heat soak. Two-piece downpipe with factory-style spherical outlet flange allows adjustability and a true bolt-on connection to the existing exhaust.
- Oil System Engineering (Industry First) // Oil feed for the atmospheric turbo is sourced post-filter to ensure clean, stable supply. Oversized -12 AN oil drain routes to the upper oil pan above the oil level for proper gravity drain and reduced backpressure risk.
- Mounting & Durability // Heavy-duty turbo mount designed to secure S400-frame units under high load and vibration.
- Connections & Hardware // Premium oil/water lines and fittings from established manufacturers. 5-ply silicone couplers and full stainless T-bolt clamps at all boosted joints.

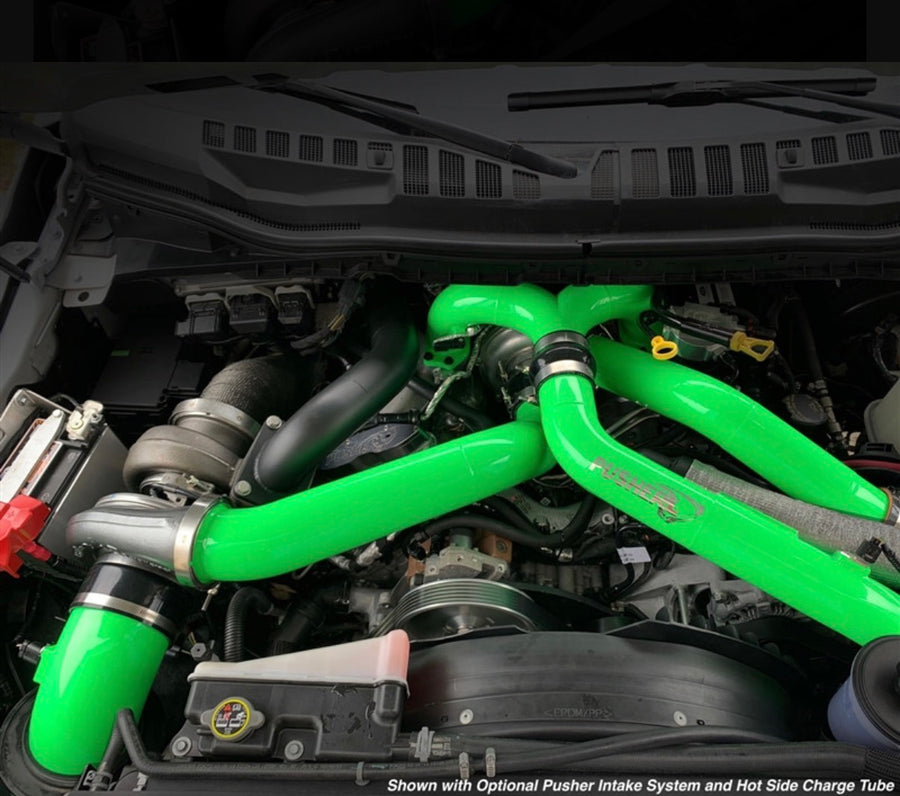

- Compatibility // Works with Pusher intake and hot-side charge components, and many third-party intake systems. Contact for current compatibility confirmation.
- Installation // No welding or major modification required. True bolt-on configuration with detailed, full-color instructions. Typical install time is 4–8 hours depending on experience.

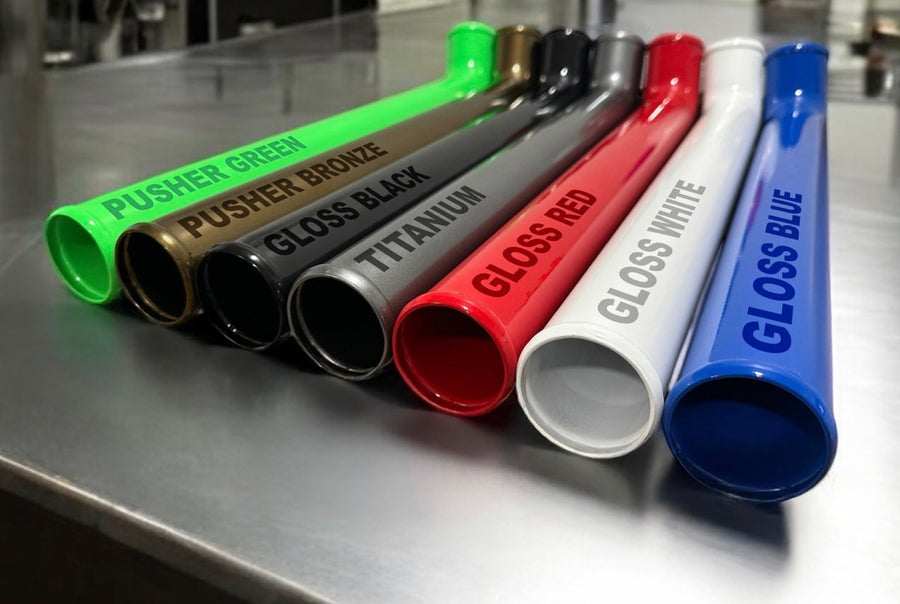

- Finish Options // Multiple powder coat colors available.
Fitment Notes:
Dual alternator and Platinum trim trucks require extension of the passenger-side positive battery cable.
Frequently Asked Question
Installation Difficulty:
Designed for straightforward, cab-on installation. Remove the factory intake, battery, low-pressure A/C line, and downpipe, then install the system using standard hand tools. Detailed step-by-step instructions are included. Typical install time is 4–8 hours.
Vehicle Fitment
- 2020-2022 Ford F-350 6.7L Powerstroke
- 2020-2022 Ford F-250 6.7L Powerstroke
