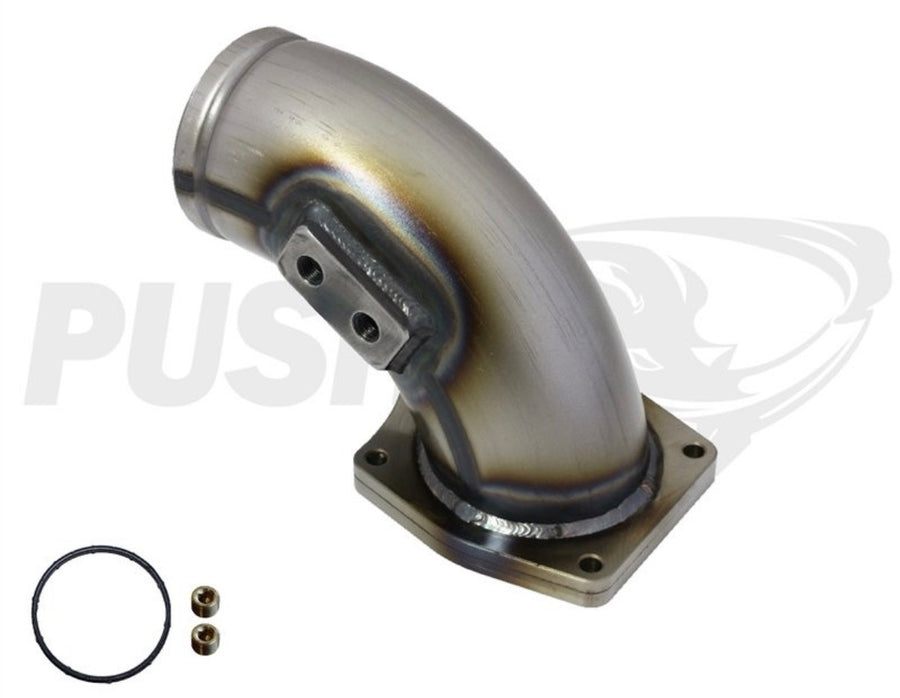

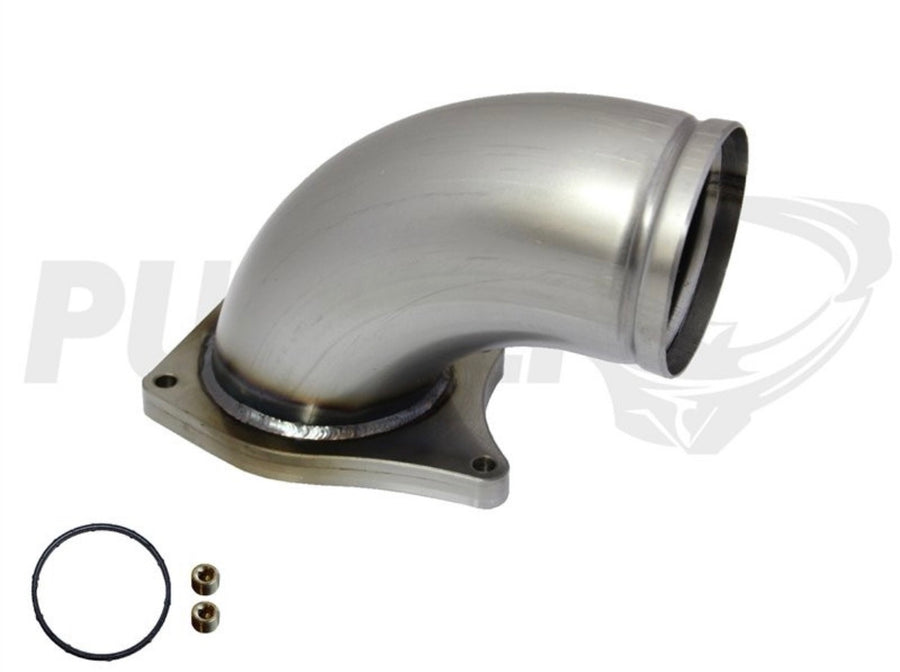

Pusher Intake Manifold 2005-2007 Ford Powerstroke

Pusher Intake Manifold for Powerstroke 6.0L turbo diesel engines in 2005-2007 Ford Superduty trucks.

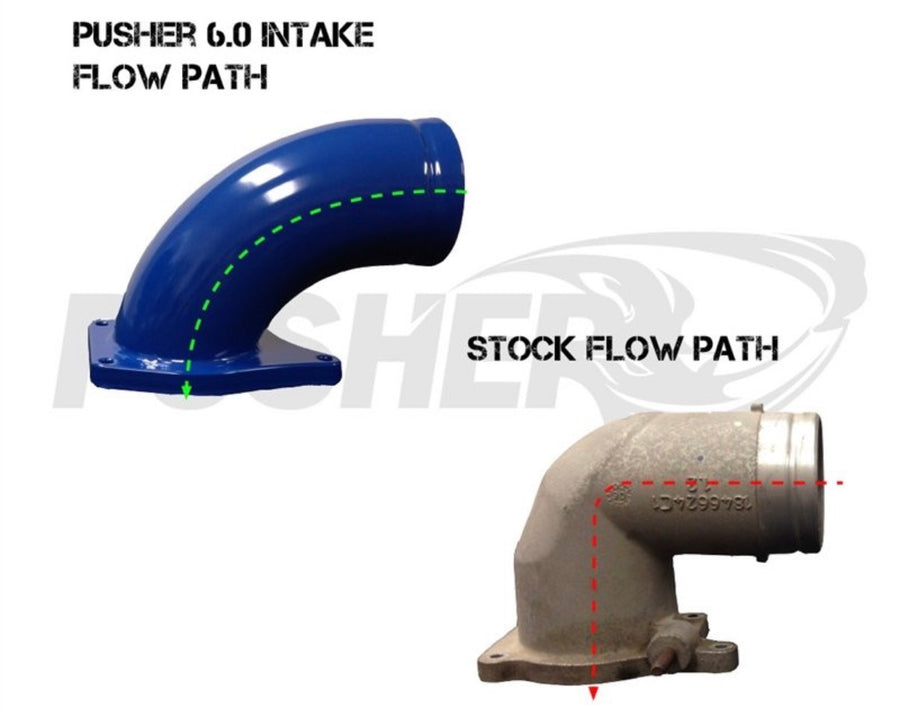

The factory intake elbow on the 6.0L Powerstroke equipped 2005-2007 Ford Superduty trucks is a major choke point in the factory charge air system. It features a sharp 90 degree turn and tapers down to an internal diameter of 2.47". Simply replacing the factory intake elbow with a Pusher intake manifold nets a 65% gain in flow under the identical inlet pressure. This gain is accomplished by matching the factory pre and post intercooler charge tube's material of 3" mandrel bent 16ga tubing.

• The 3" Pusher Intake for the 6.0L Powerstroke is built from fully TIG welded and mandrel bent tubing.
• It features a 1/2" thick flange which utilizes a new factory o-ring gasket as well as 1/8" NPT ports for a boost gauge reference or injectors.

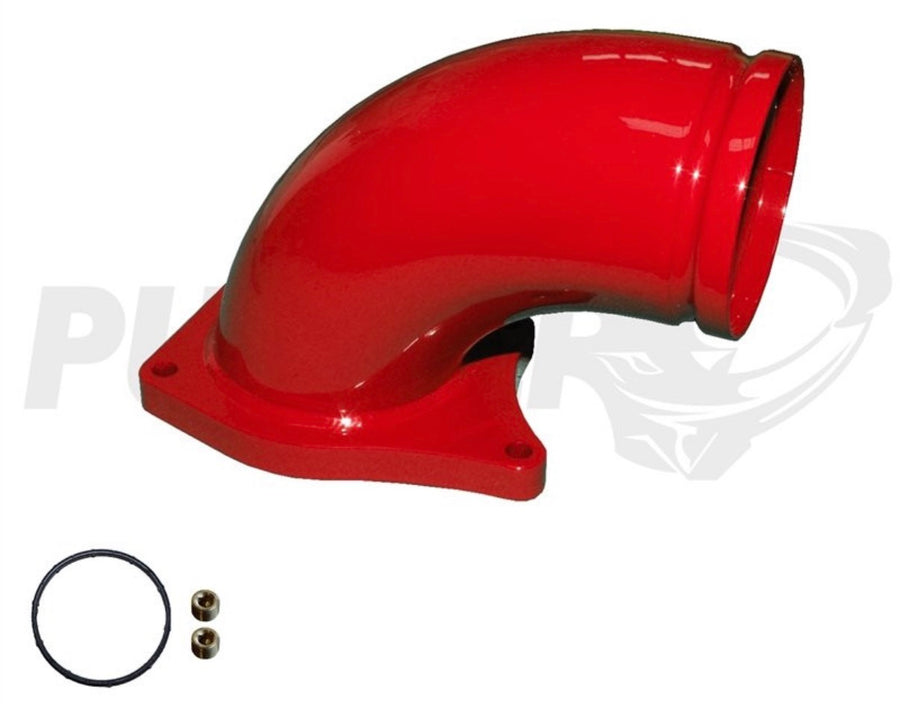

• For an additional charge, select powdercoating colors are available on this manifold.
